Part Number Frequency
Stability		 Supply
Voltage		 Output Operating
Range		 Pullability Allan Deviation @1s Allan Deviation @10s Allan Deviation @100s Inventory
AR36CPT-10.000MHz-CCA ±1ppb 3.3V HCMOS -10°C ~ +70°C ±100ppb typ 2.0E-10 7.0E-11 2.0E-11 *In Stock Soon*

Introduction

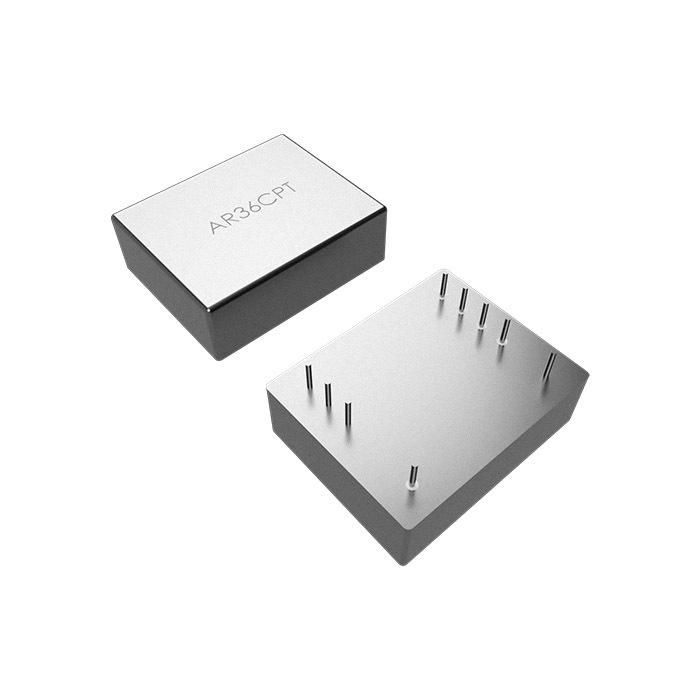

The Abracon AR36CPT Rubidium CPT (Coherent Population Trapping) oscillator is a type of frequency standard that utilizes rubidium atoms and the phenomenon of coherent population trapping to generate a stable accurate frequency.

The AR36CPT oscillator offers a compact, accurate, and reliable way to generate highly stable frequencies for timekeeping and other applications, making it a crucial component in many modern technological systems.

Features

  • High Precision Atomic Clock
  • Satellite Timing and Frequency Communications
  • Excellent Short-Term Stability
  • Short Time to Lock
  • Low Phase Noise High Precision Atomic Clock

Applications

  • Frequency Reference
  • Telecommunication Infrastructure
  • Broadcast
  • GNSS/GPS
  • Test & Measurement Equipment
  • Base Stations
  • Mining & Seismic Research
  • Underwater Sensor System

Benefits

  • CMOS Output Frequency 10MHz and 1PPS
  • Ultra-tight Frequency Accuracy ≤5.0E-11
  • Operating Supply Voltage +3.3Vdc
  • Extended Operating Temperature Range -40 to +70°C
  • Low Power Consumption <1.6W
  • Voltage Control Input Feature with ±100 ppb Range
